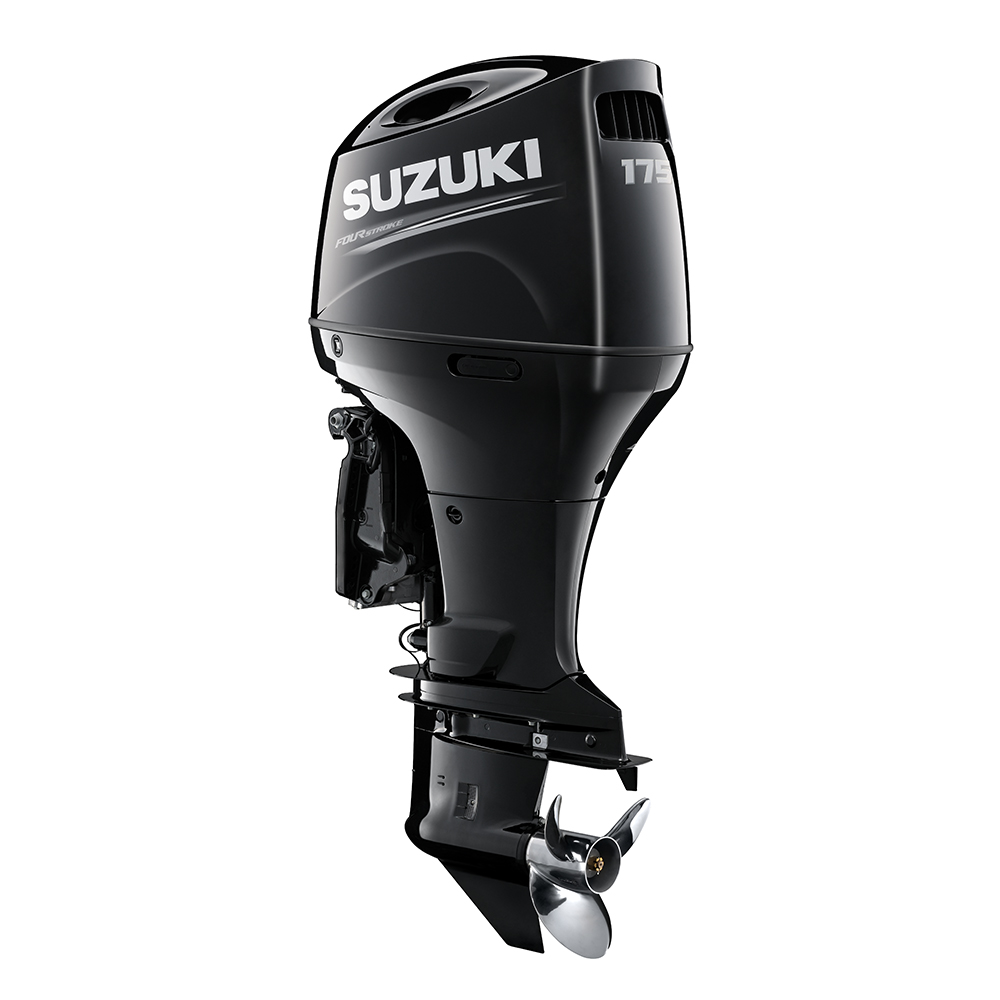

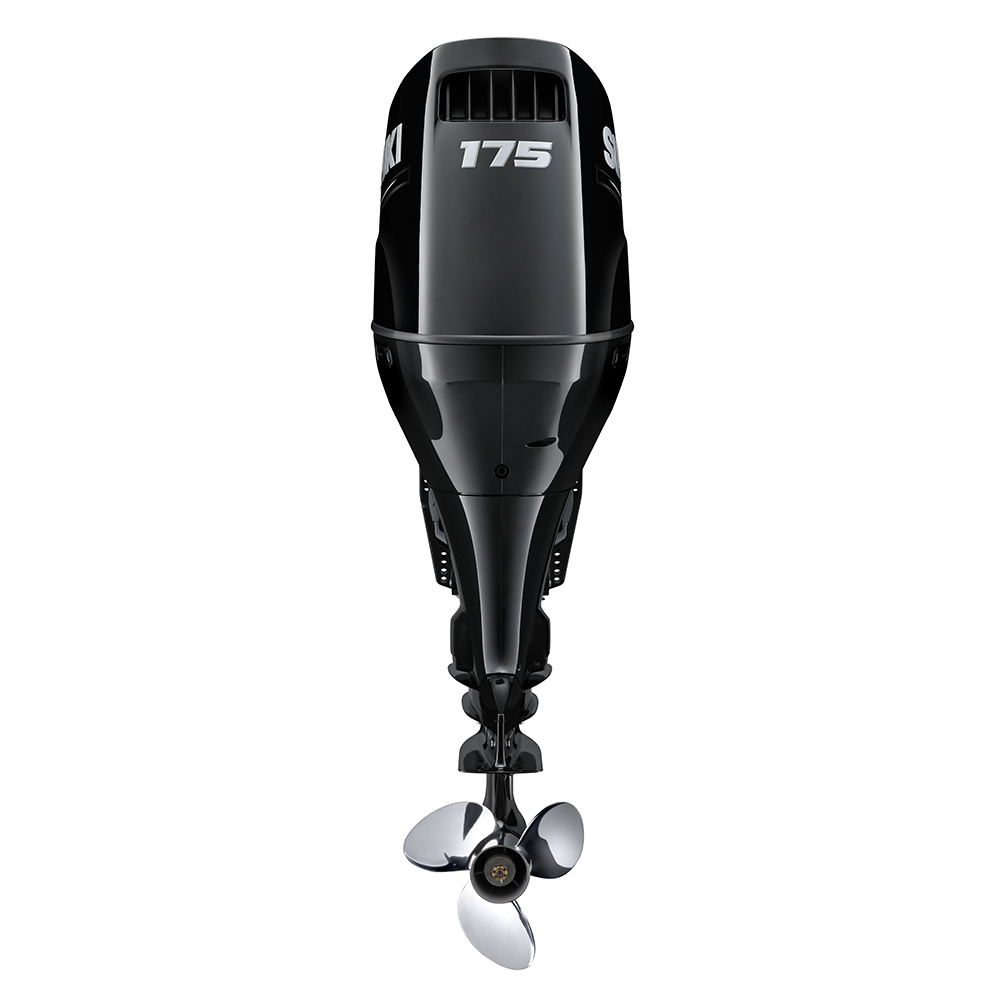

Suzuki DF175AP

Call today for our best price. Contact us on 01803 752242 or email sales@darthaven.co.uk. Retail price list downloadable below.

Suzuki's DF175AP incorporates the Drive by Wire Suzuki Precision Control System for easy, smooth and precise throttle and shift operation. The AP model also incorporates Suzuki Select Rotation which enables the outboard to operate in either clockwise standard rotation or counter clockwise rotation. The DF175AP is based on an inline four cylinder DOHC powerhead with a 2,867cm³ (174.9 cu.in.) displacement. While the large displacement contributes greatly to producing exceptional acceleration and torque, it doesn't mean that they are comparatively larger and heavier in size. On the contrary, Suzuki's engineers have targeted this big block motor to be one of the most versatile four strokes in the 175 HP class.

For more information please download the brochure below.

Specification Value
Recommended transom height: L: 508mm (20in) X: 635mm (25in)
Weight: L: 236.0kg X: 241.0kg
Bore x Stroke: 97 x 97mm
Propeller Selection (pitch): 15" - 27.5"
Starting System: Electric
Engine Type: DOHC 16-Valve
Fuel Delivery System: Multi-Point Sequential Electronic Fuel Injection
No. of Cylinders: 4
Piston Displacement: 2867cc
Maximum Output: 129KW
Full Throttle Operating Range: 5,500 - 6,100
Steering: Remote
Oil Pan Capacity: 8.0L
Ignition System: Fully-transistorised
Alternator: 12V 44A
Engine Mounting: Shear mount
Trim Method: Power trim and tilt
Gear Ratio: 2.50:1
Gear Shift: F-N-R (Drive-by-Wire)
Exhaust: Through prop hub exhaust
