Dealerships & Product Volvo Penta Sailboat NEW D2-50 - Available from Q2 2017

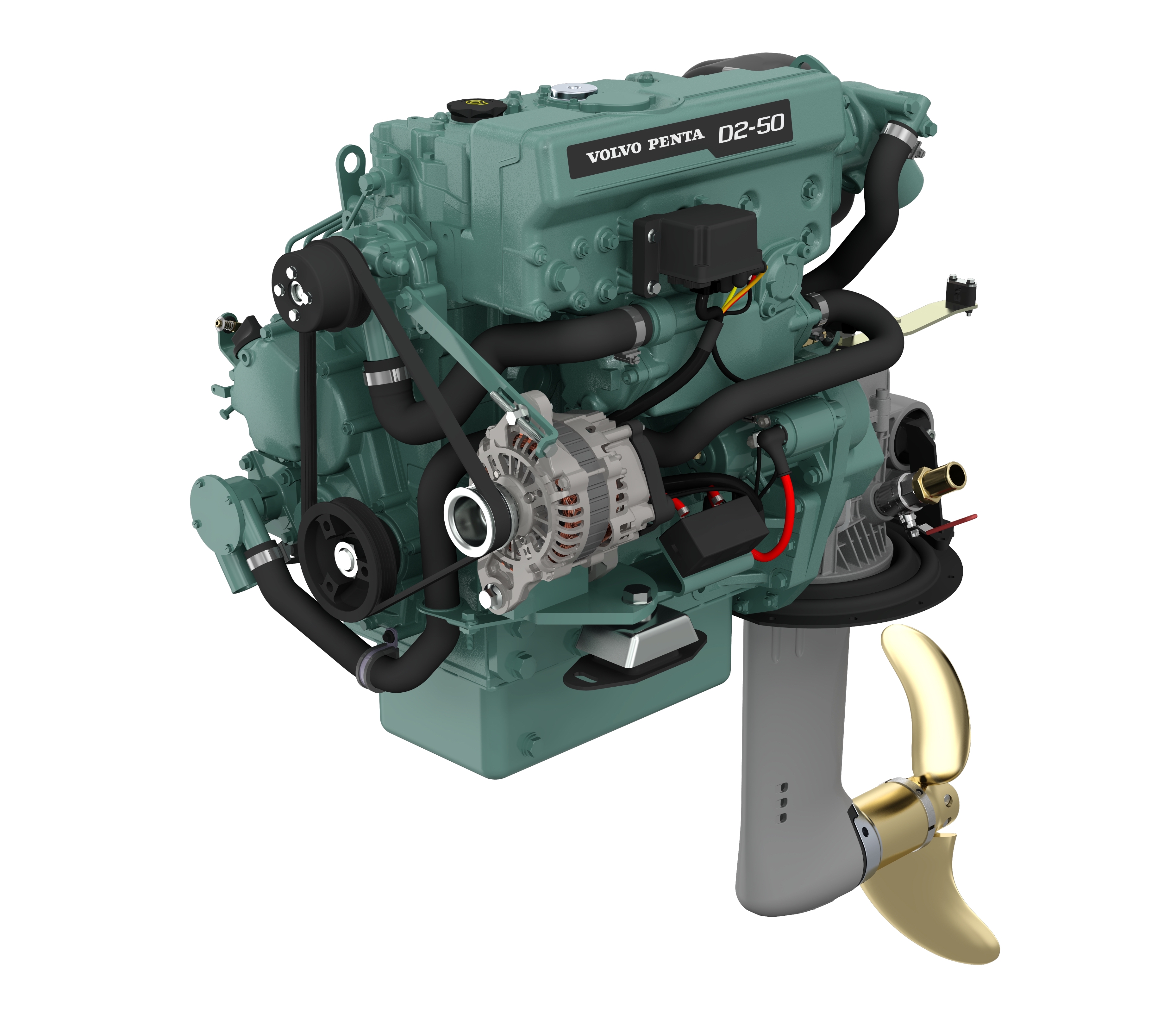

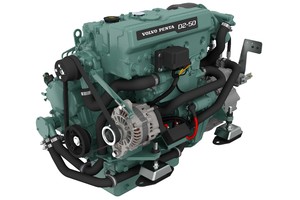

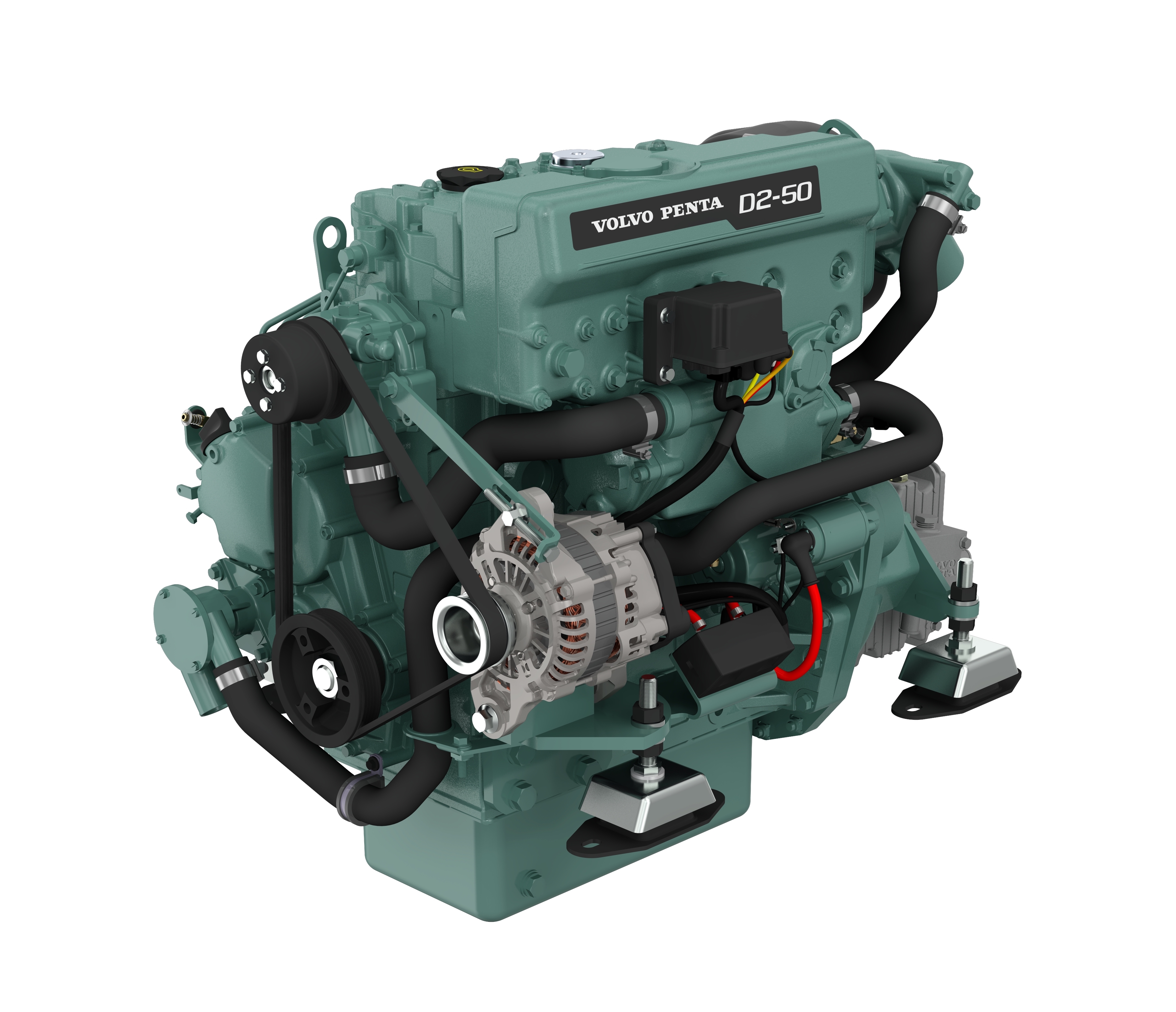

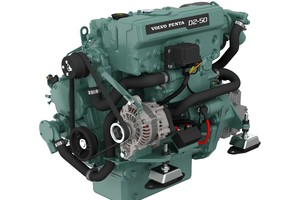

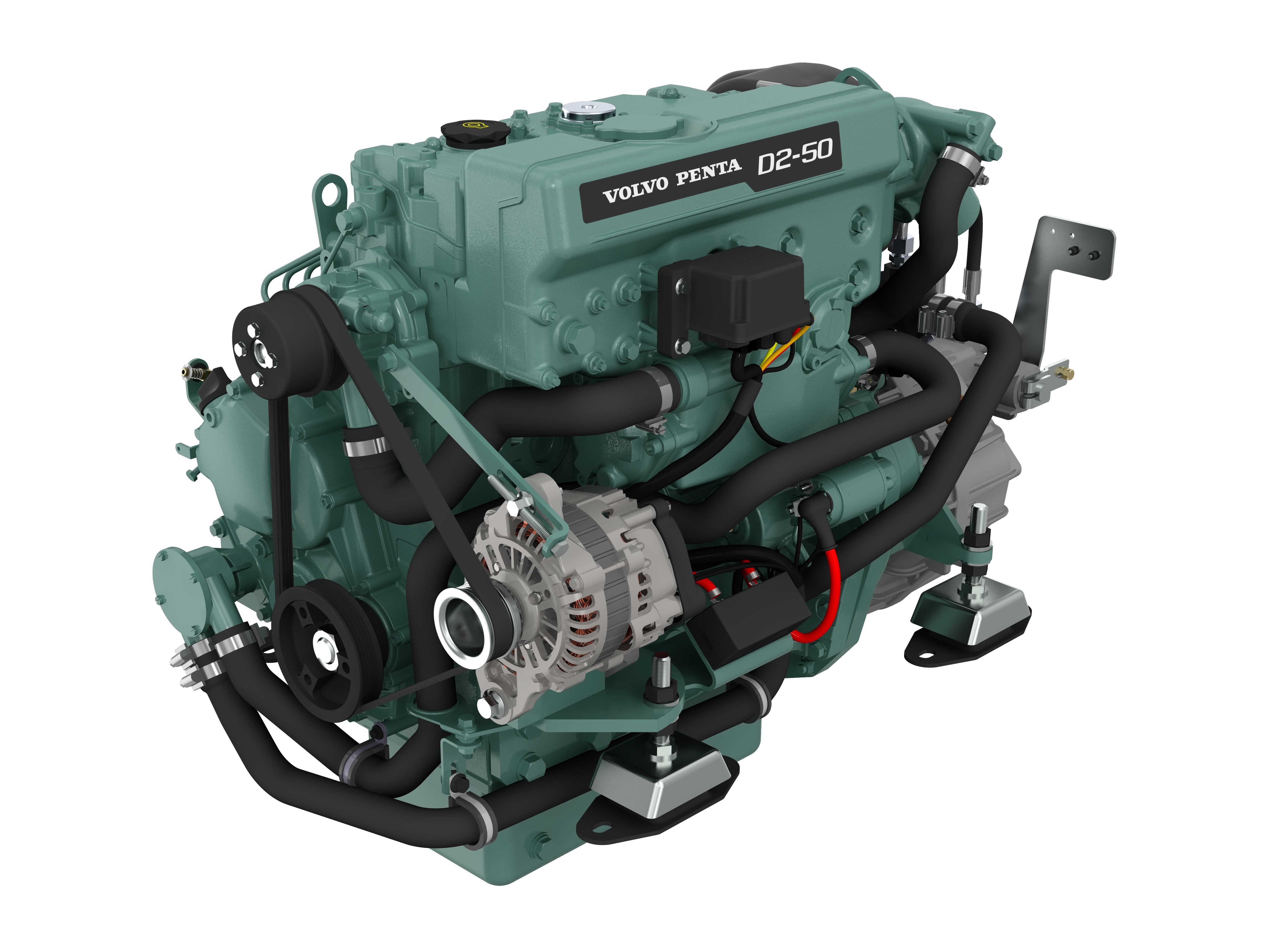

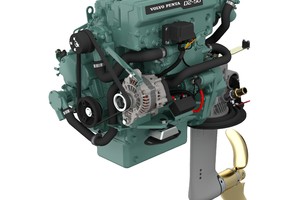

Volvo Penta D2-50 is an in-line 4-cylinder, 2.2-liter, naturally aspirated diesel engine using a camdriven, in-line injection pump, and freshwater cooling. With low cruising rpm, the engine runs quietly with minimal vibrations.

Technical features

  • 115A alternator with built-in charging sensor
  • Electronic Vessel Control instrumentation and NMEA interface
  • Dedicated oil change pipe
  • Relay-activated starter solenoid
  • Freshwater cooling is standard High-capacity hot water outlet

NOTE! The engine will be available as from Q2 2017

Call today for our best price and availability. Contact us on 01803 752242 or email sales@darthaven.co.uk

Specification Value
Engine D2-50
Production Period 2017-
Operation 4-stroke
Cylinder Configuration 4
Bore (mm) 84
Stroke (mm) 100
Compression Ratio 23.31:1
Displacement (litres) 2.2
Power (hp) 49
Max engine speed (rpm) 3000
Downloads
Technical drawing - saildrive Download
Technical drawing - HS25A Download
Technical drawing - MS25A Download
Technical drawing - MS25L Download
